Macnaught M3 12 Volt 20 GPM 1″ High Flow Fuel Transfer Pump – PN# EXDFP12-001

Macnaught M3 12 Volt 20 GPM 1″ High Flow Fuel Transfer Pump – PN# EXDFP12-001

Regular price $399.00
Regular price $475.00 Sale price $399.00
Sale Sold out
Shipping calculated at checkout.

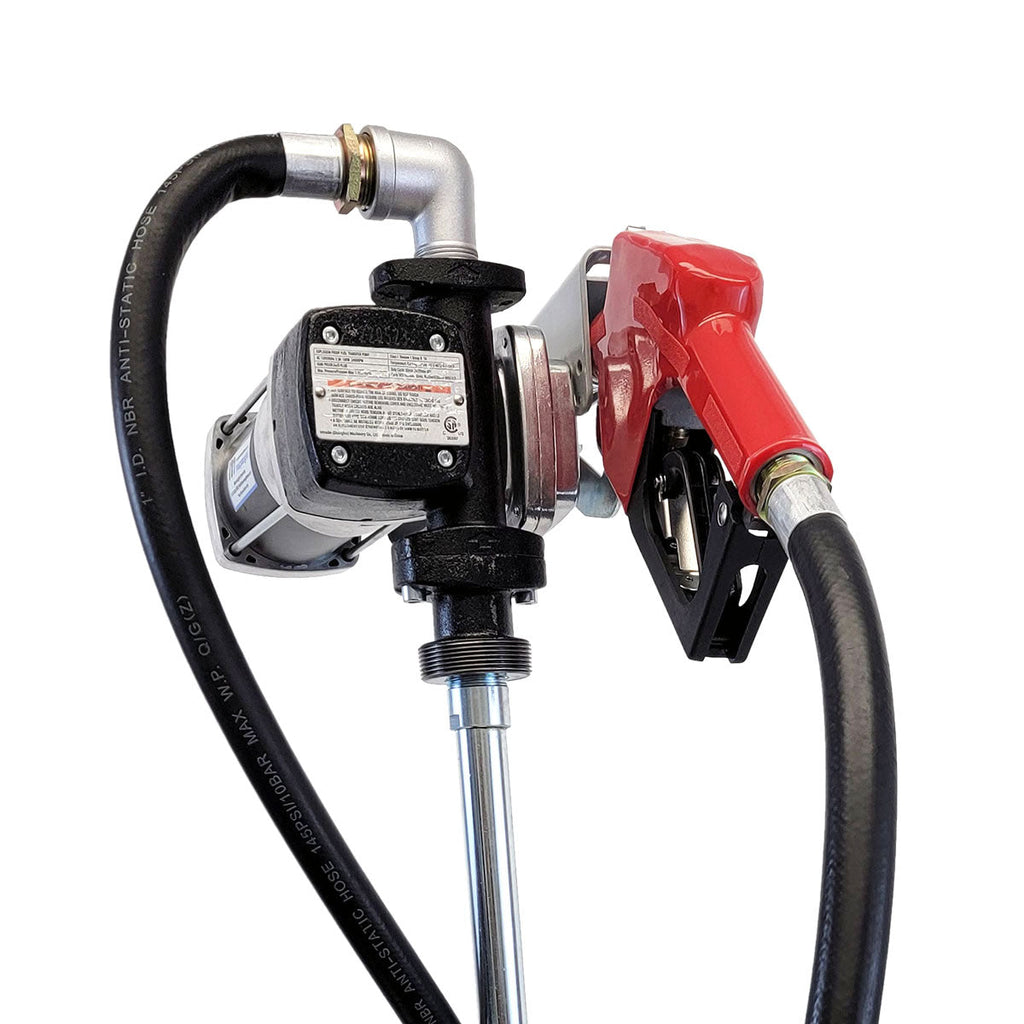

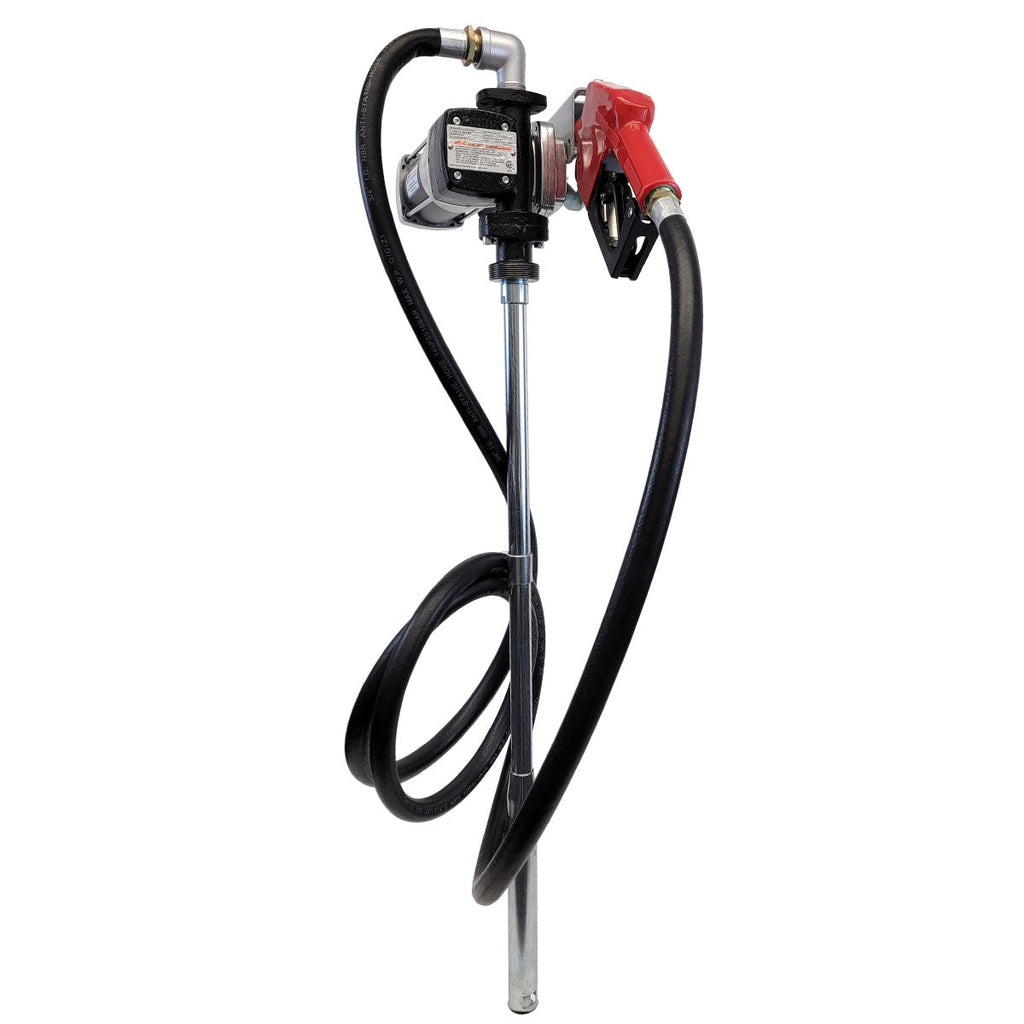

The Macnaught M3 12 Volt 20 GPM High Flow Fuel Transfer Pump is designed to provide maximum efficiency, with a 20 GPM flow rate and a 1" inlet/outlet size. Approved for gasoline, diesel, kerosene, and mineral spirits.  This pump is also equipped with an efficient 12 Volt motor, pick up tube, 14' hose, and automatic shutoff nozzle, capable of transferring fuel quickly and reliably. With such high performance, it's the ideal solution for fueling applications.

$mart alternative to replace a worn-out Fill-Rite or GPI pump! Macnaught M3 comes with 2 year warranty vs. Fill-Rite's 1 year warranty, at a better price point!


  • 12V CSA Certified C1D1 20 GPM Rotary Vane Fuel Pump

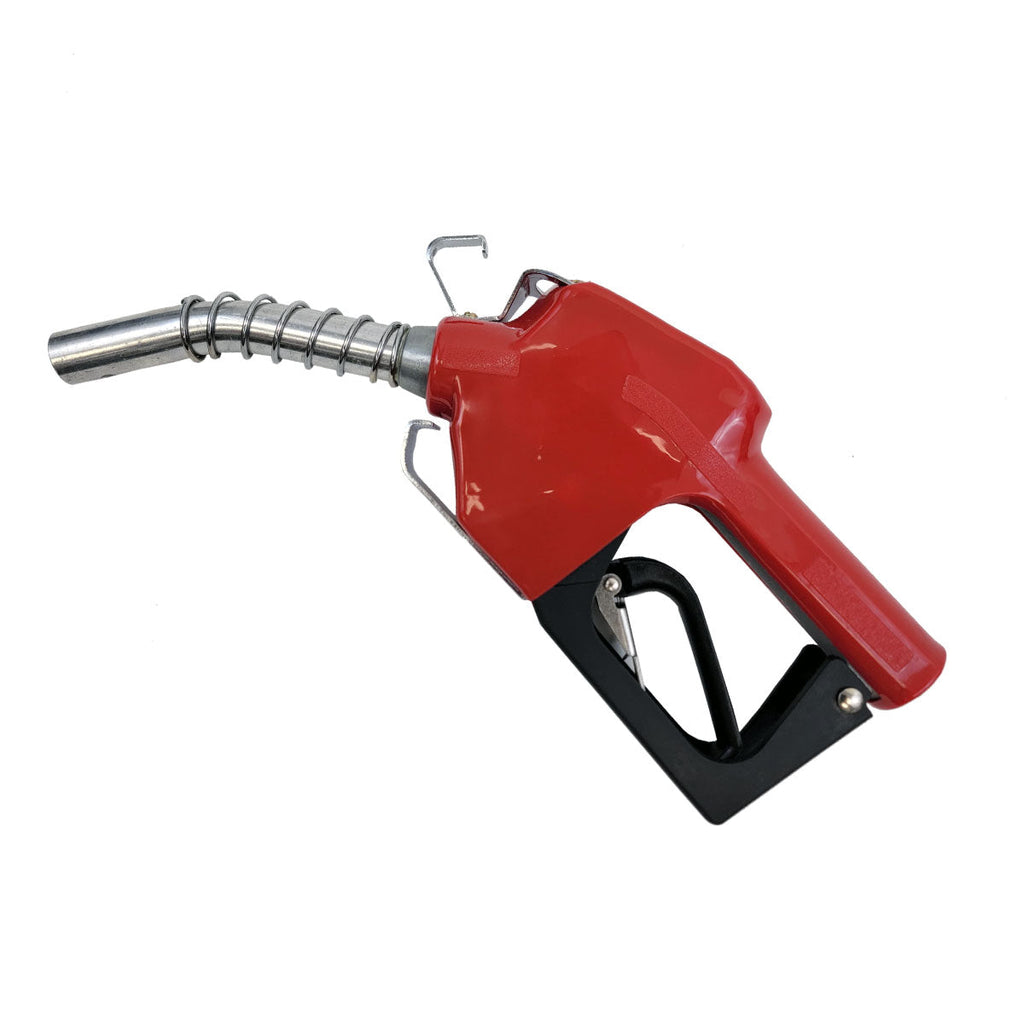

  • Premium Grade Auto Shut-Off Nozzle
  • Suitable for: Gas, Diesel, Kerosene, Mineral Spirits

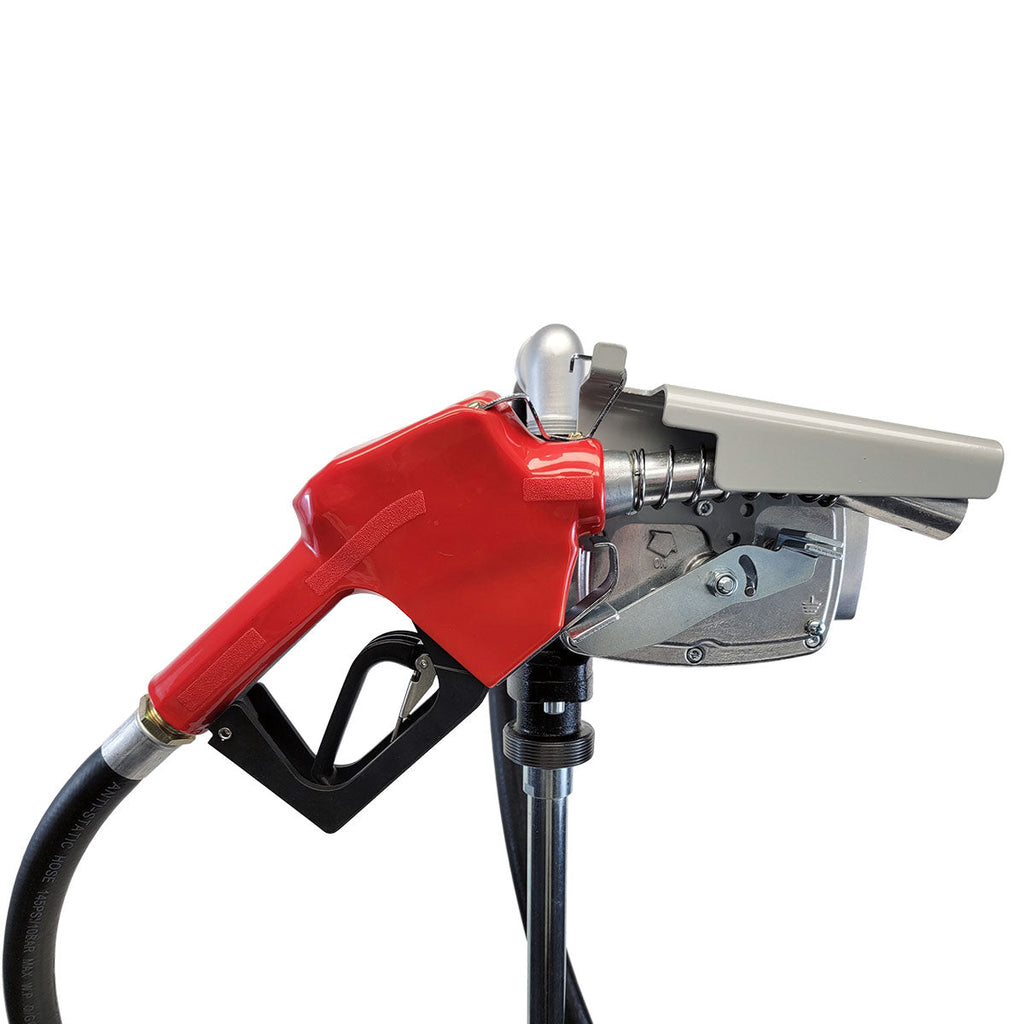

  • Nozzle Holder with Locking Option

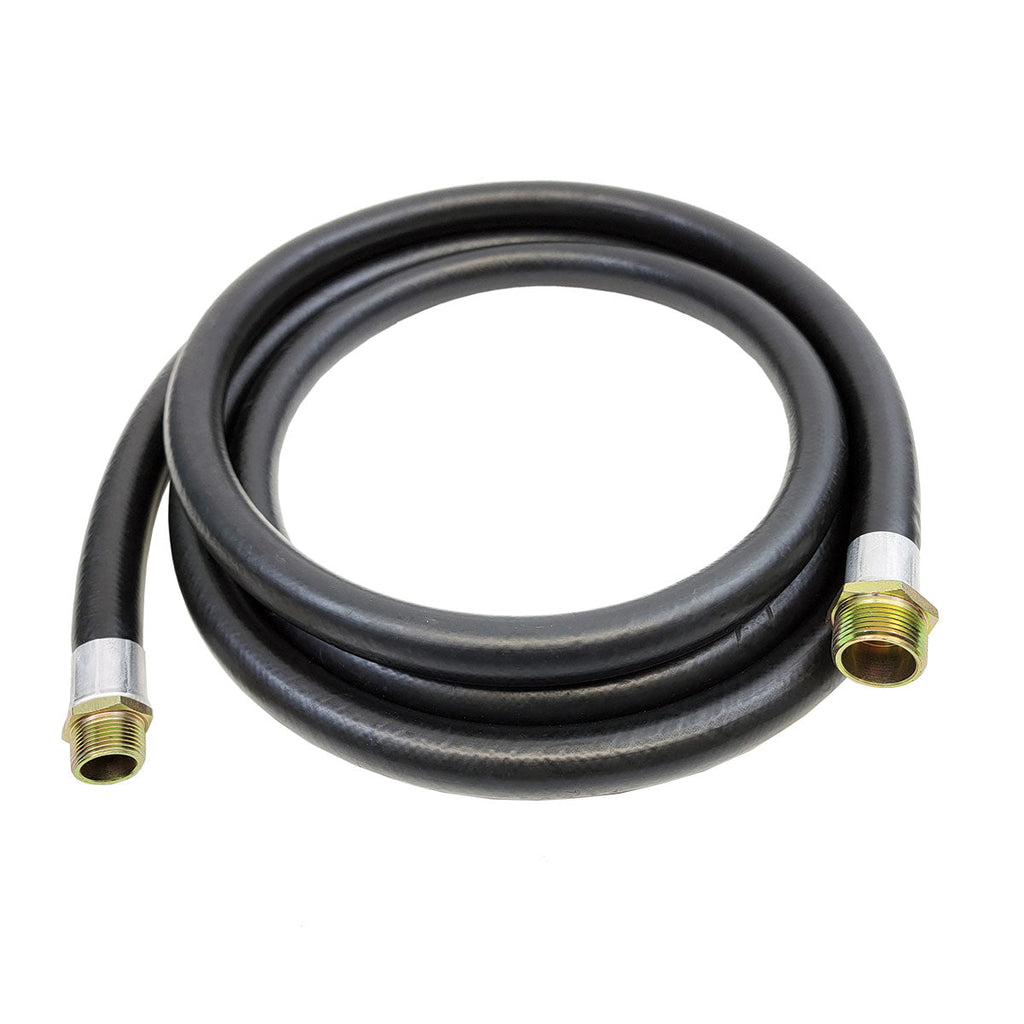

  • 14 ft x 1 inch Fuel Rated Anti Static Hose

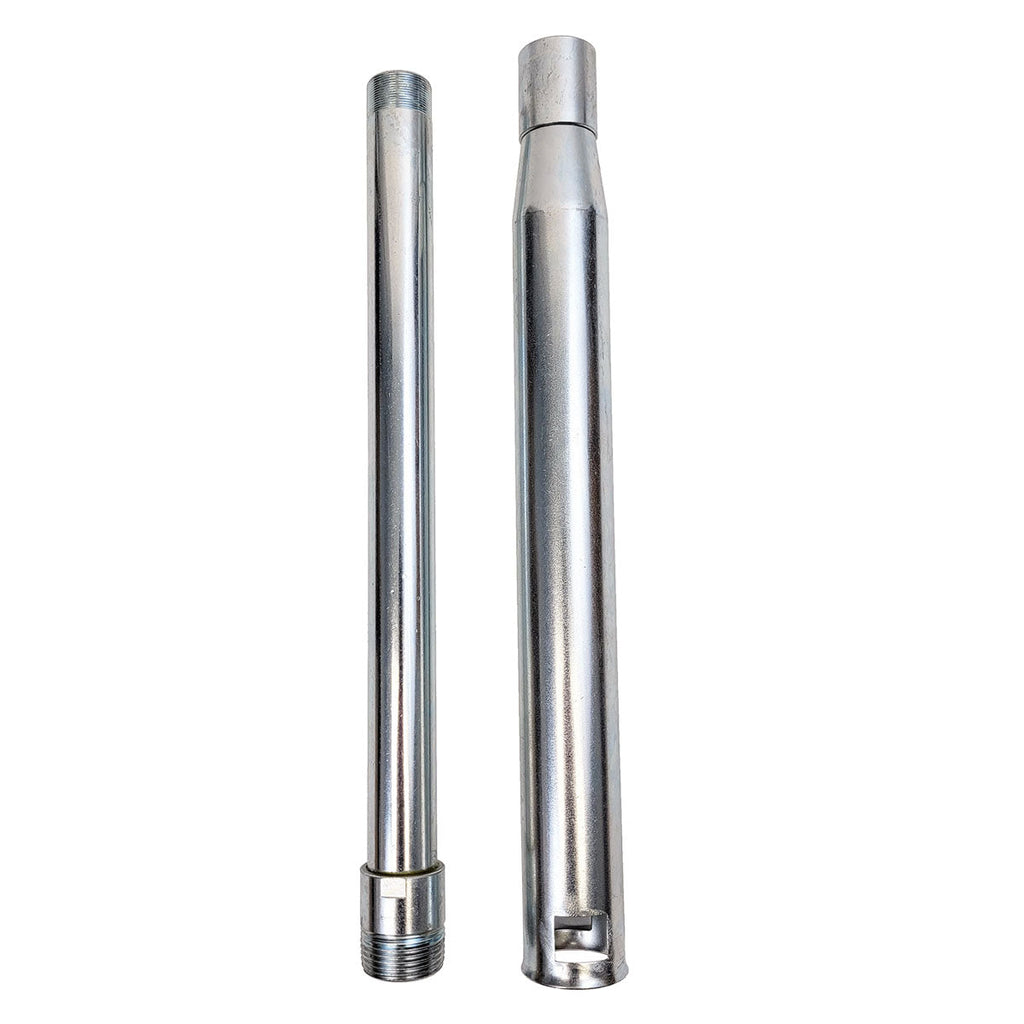

  • 2 inch Tank Adapter with expandable to 36 inch net length Steel Suction Pipe
  • Inlet Filter Screen
  • Built In Bypass Valve
  • Thermal Overload Protection
  • 16 ft Power Cable
  • Duty Cycle: 30 Minutes
  • 220W / 28A Motor
  • Maximum Lift is 8 feet
  • Maximum By-Pass Time is 3 minutes
  • Do not run dry
  • 40 Pounds

Macnaught USA is headquartered in Florida and has been a leader in the automotive fluid handling arena since 1989. The name is synonymous with high quality products, and we're proud now to now offer Macnaught products here at ProTruckUSA!
