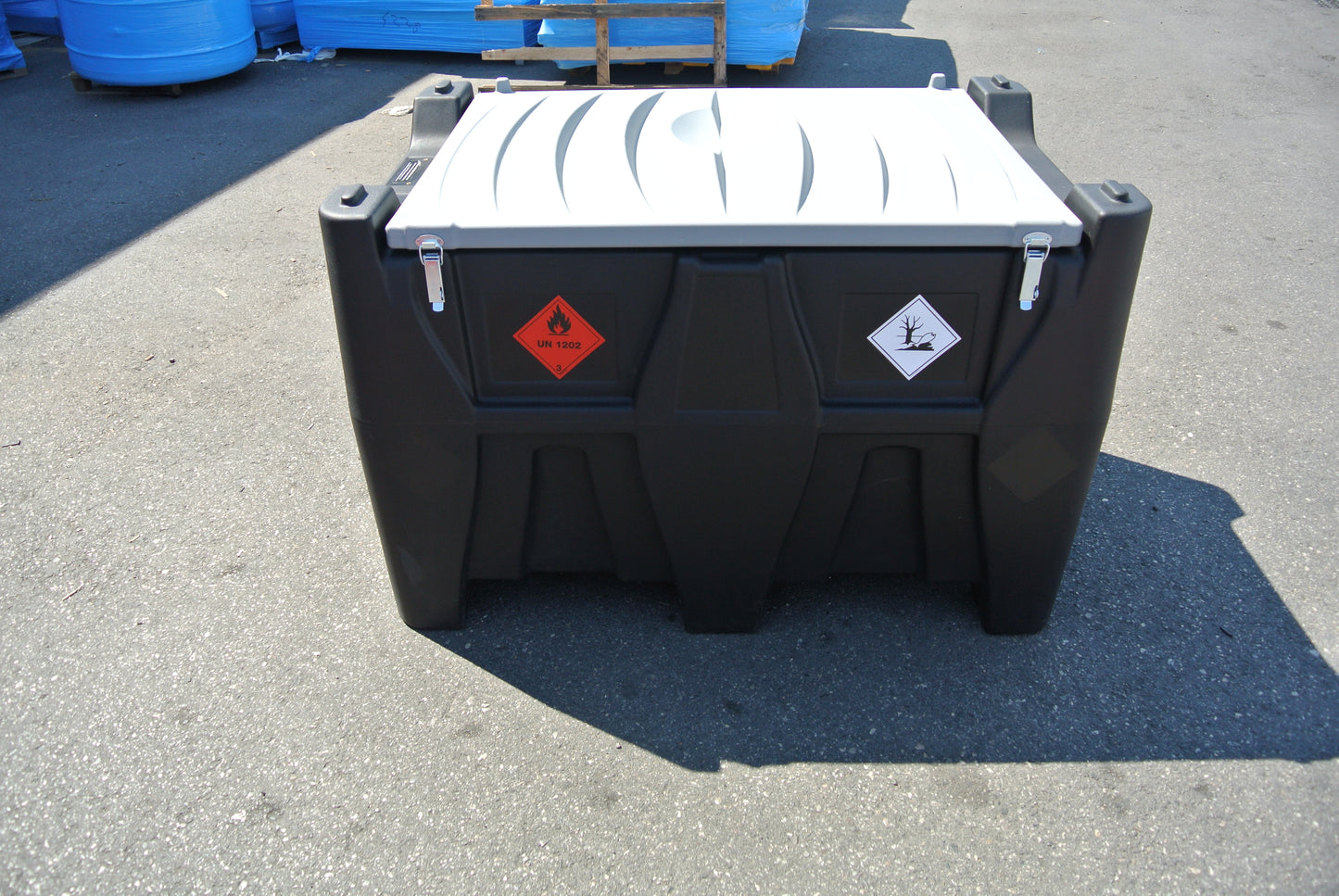

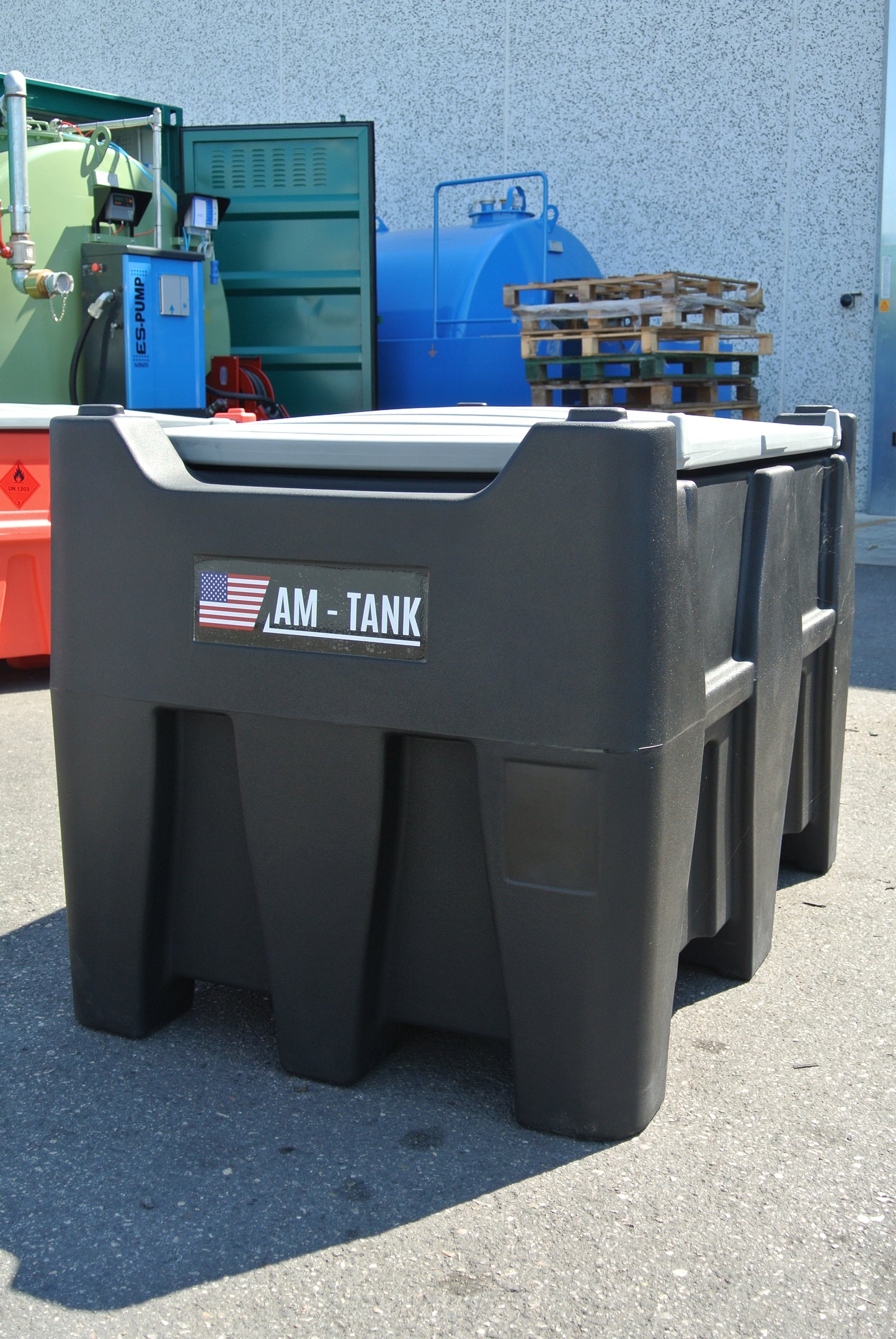

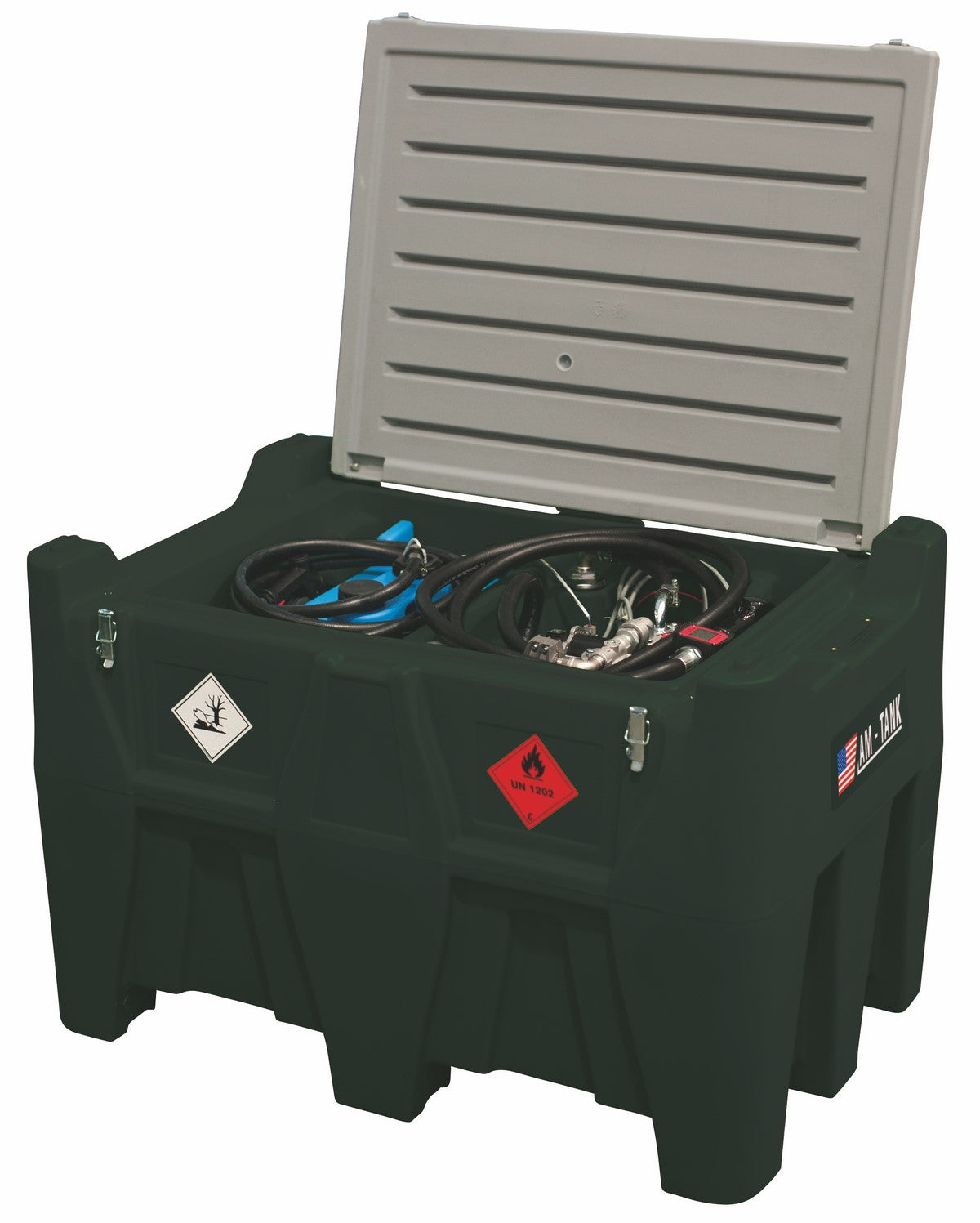

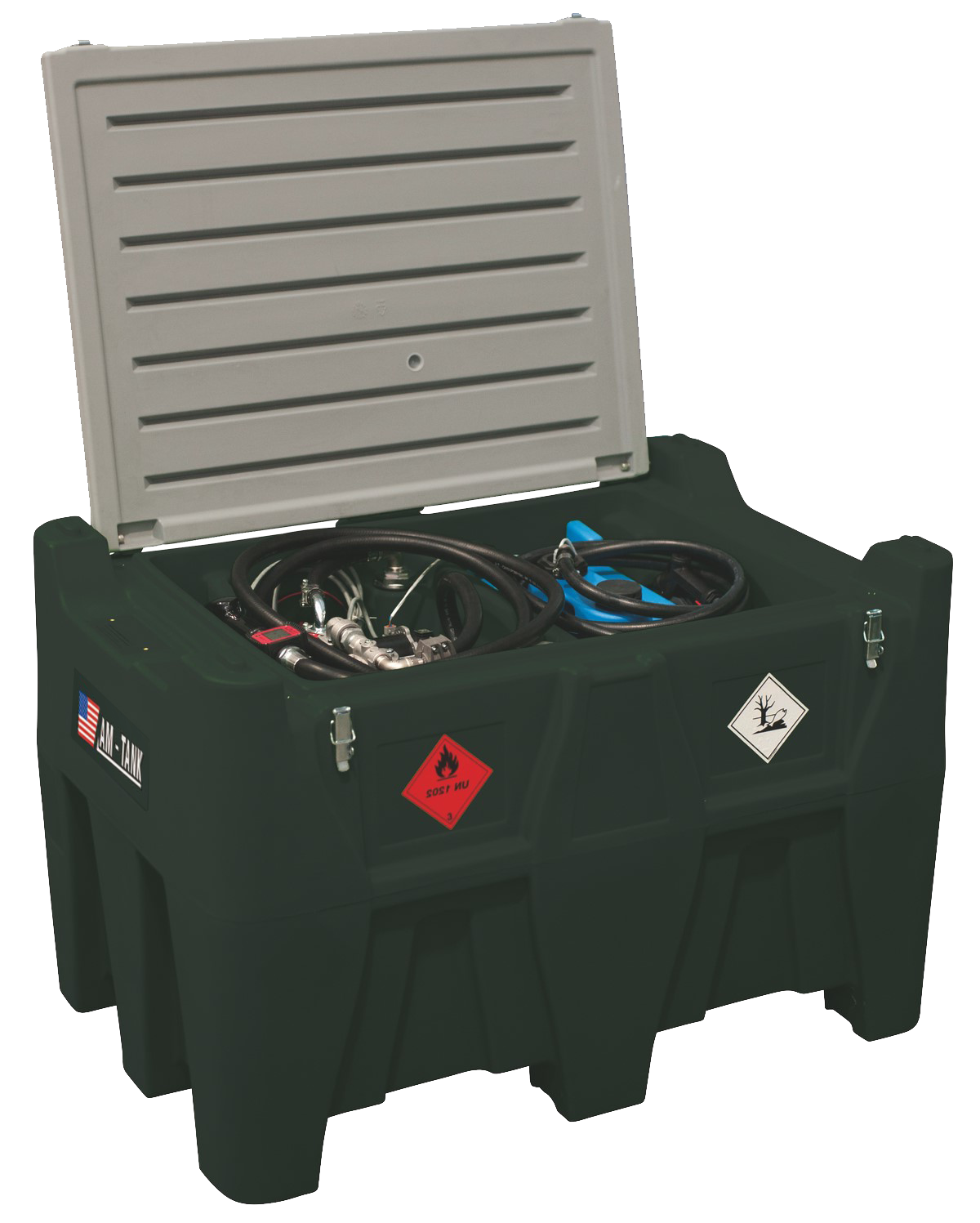

AM-TANK 105 + 13 Diesel & DEF Transfer Tank Combo w/ 12V Pump with Automatic Nozzle

AM-TANK 105 + 13 Diesel & DEF Transfer Tank Combo w/ 12V Pump with Automatic Nozzle

Regular price $1,499.00
Regular price Sale price $1,499.00
Sale Sold out
Shipping calculated at checkout.

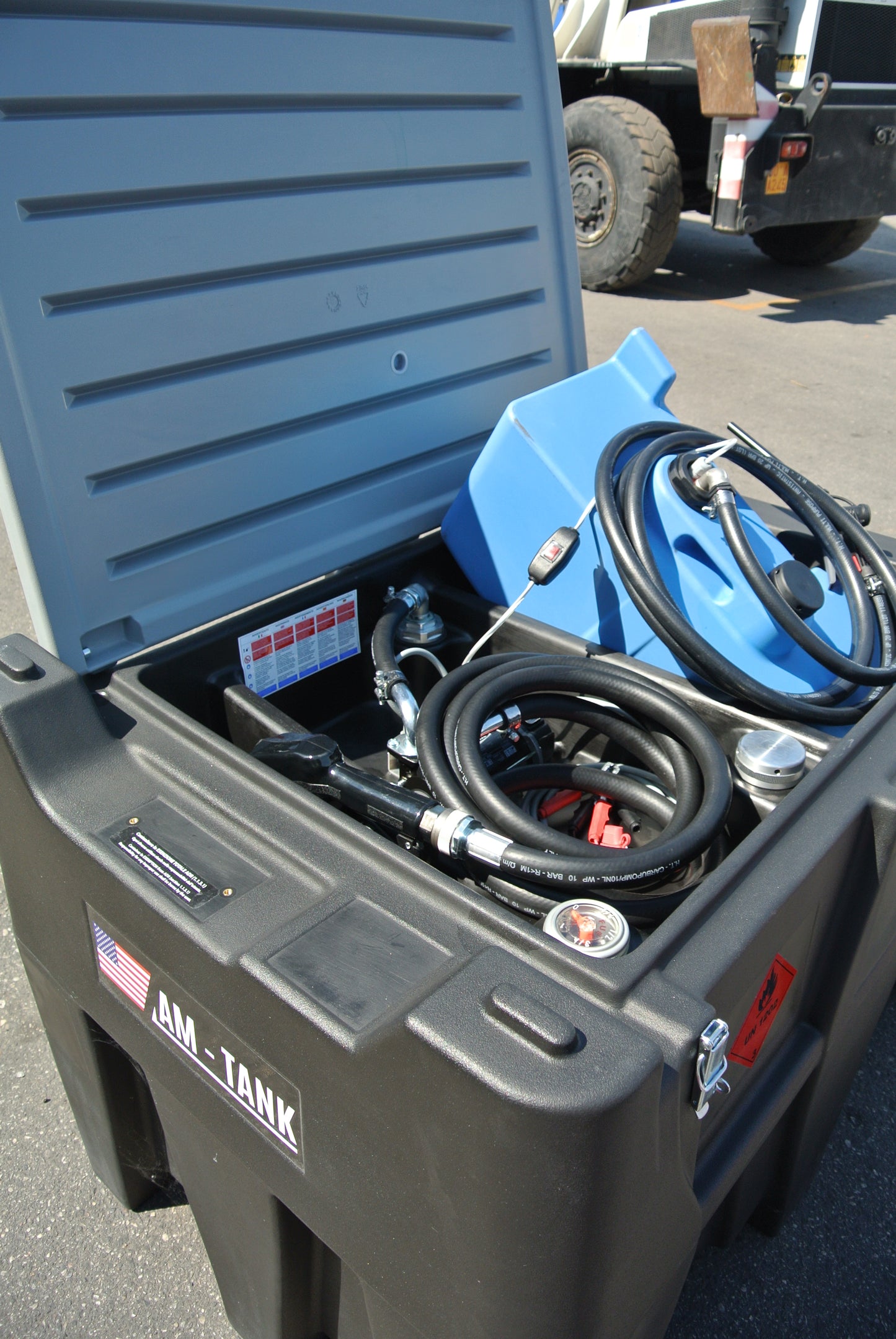

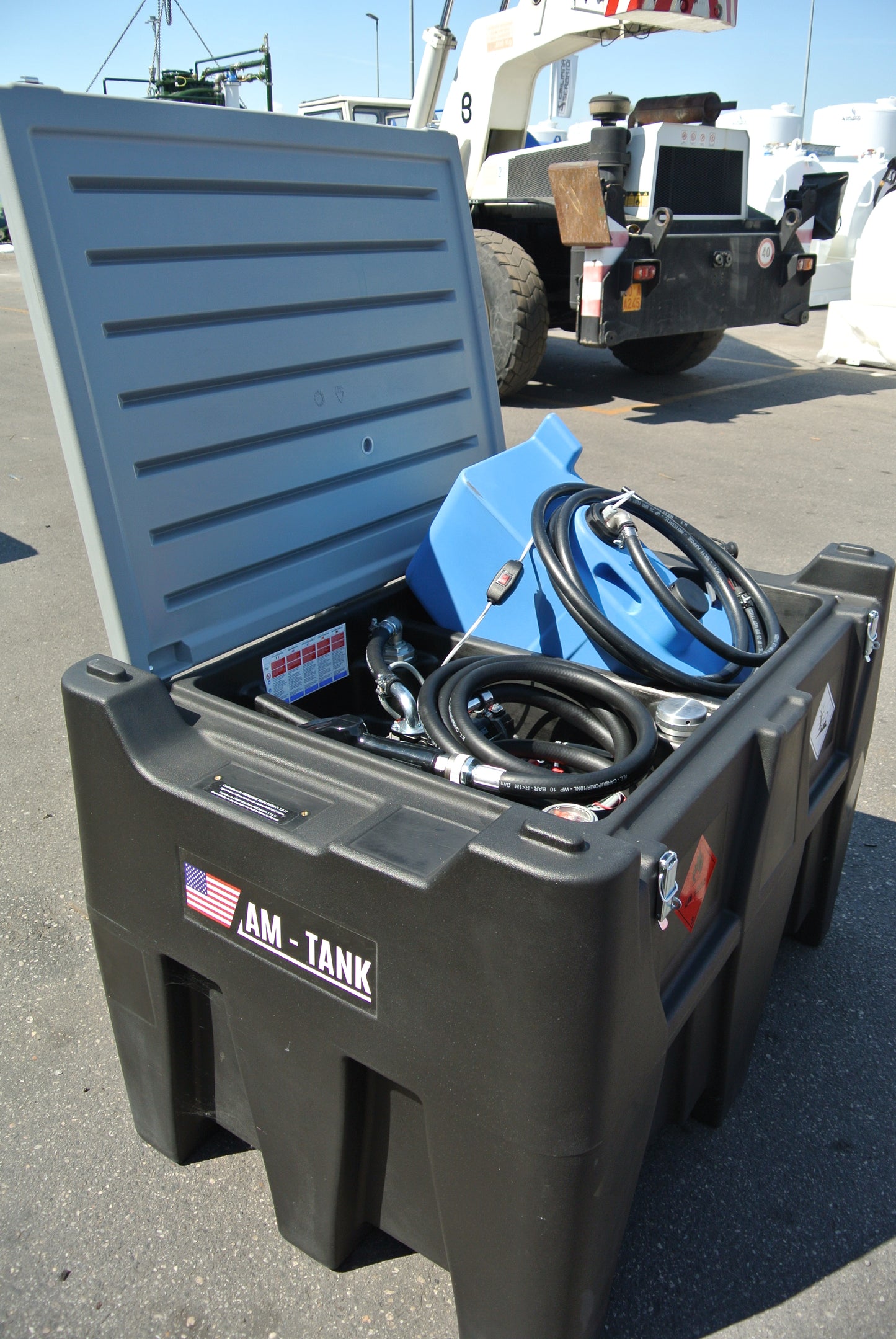

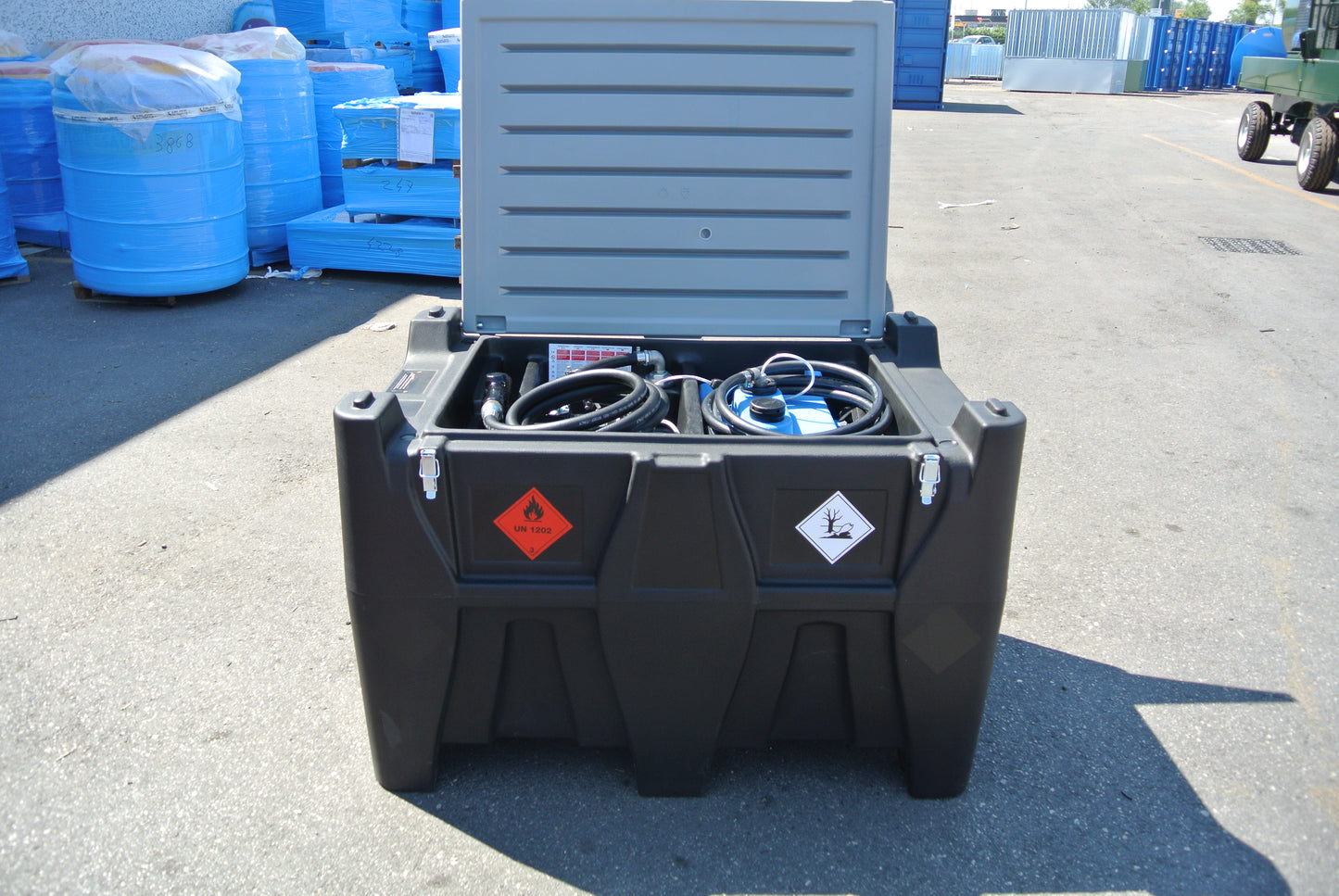

Tanks are equipped with:

  • 2” filling plug equipped with three-effects (pressure/de-pressure/overturning) air vent device for both Diesel and DEF section

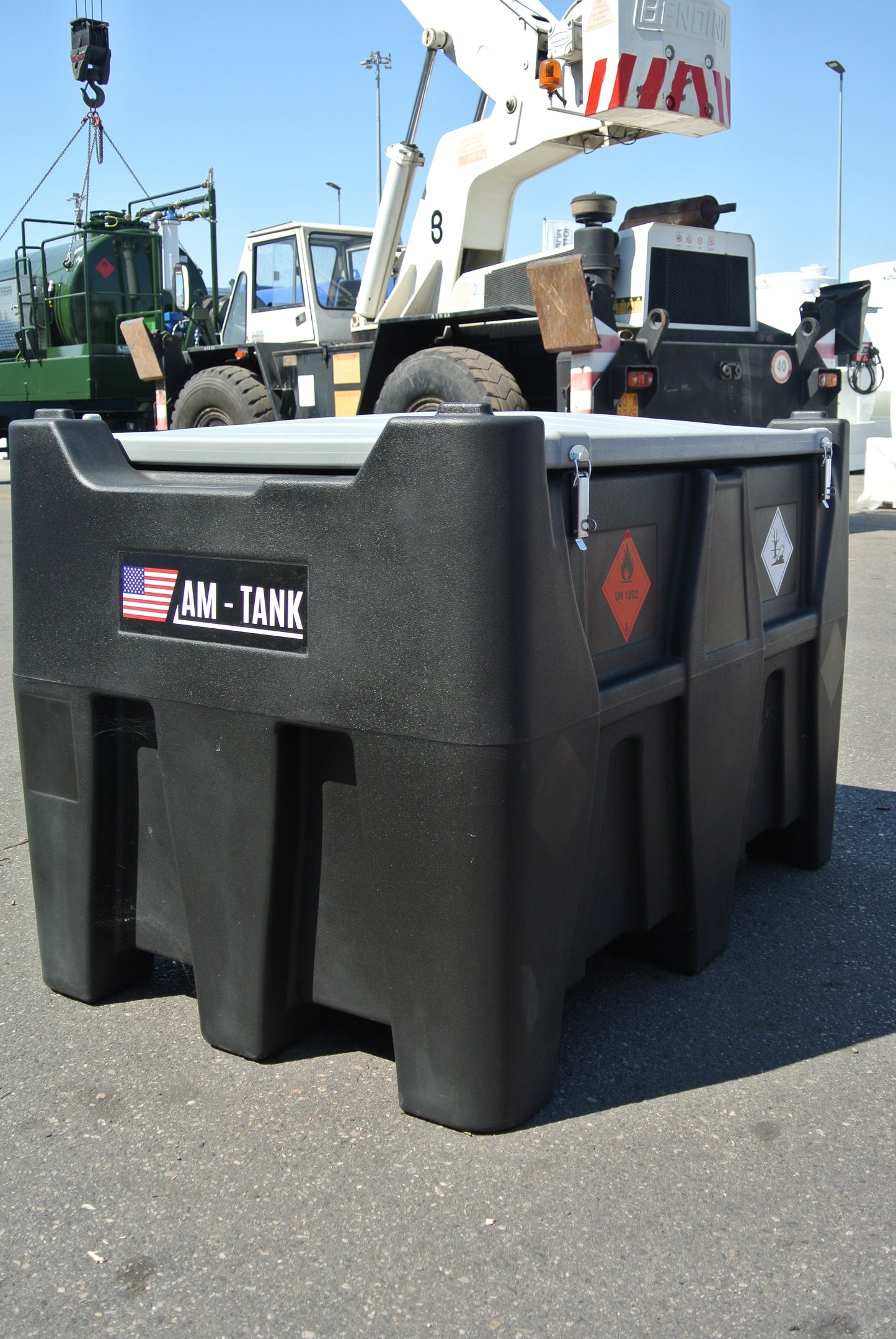

  • Integrated forklift pockets (to lift when full)
  • Integrated handles (to lift when empty)
  • Integrated recesses for securing with ratchet lashing straps during transport
  • Integrated covering lid to provide protection against bad weather conditions
  • UV rays and equipped with lockable draw latches
  • Suction net filter to stop and separate impurities (Diesel section only)
  • Fuel level indicator (Diesel section only)

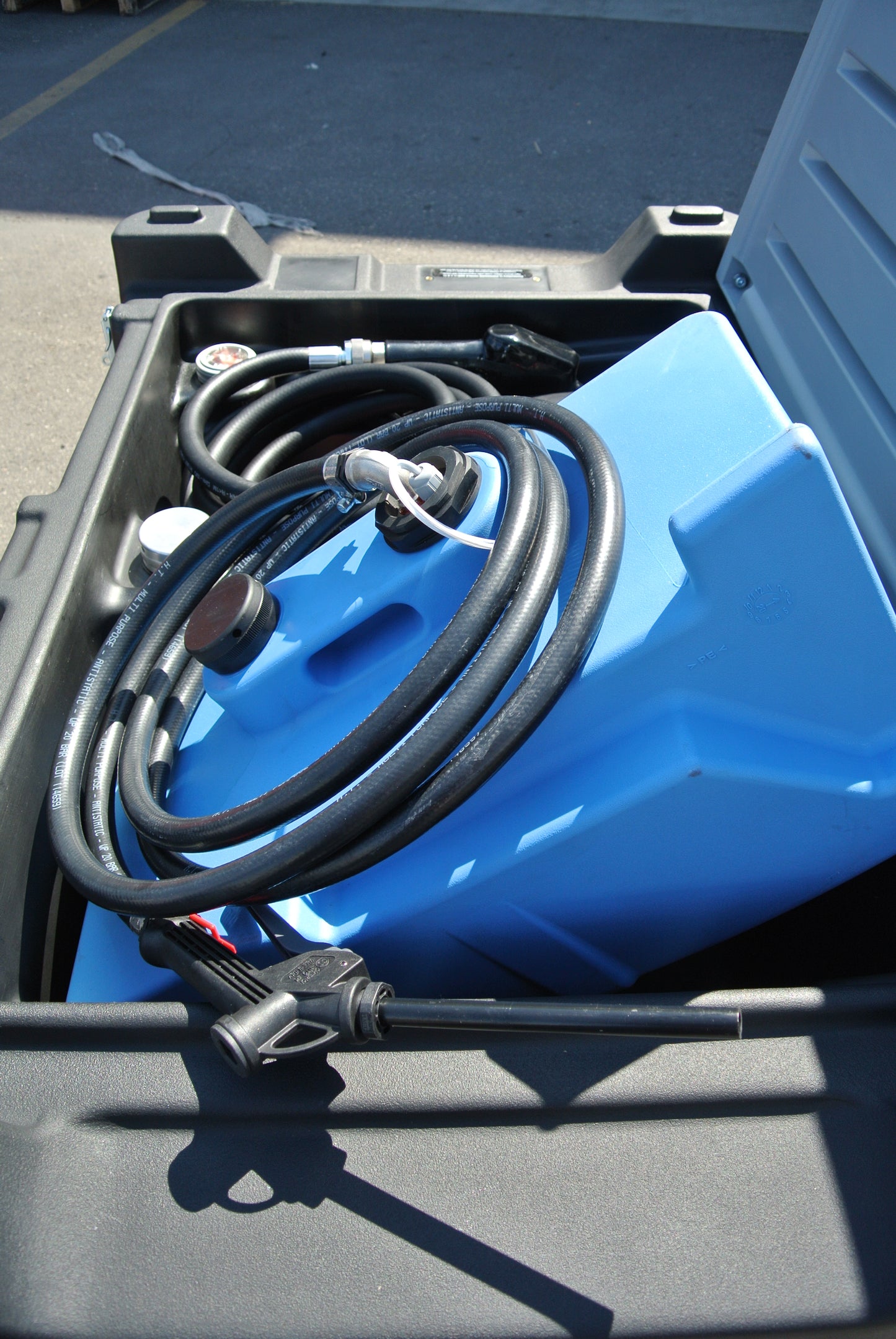

  • DEF tank can be removed. The remaining space can be used as tool tray when DEF tank is not being utilized

Great size for Tier 4 skid steers, mini-ex's, utility tractors, you get the idea. Portable 105+13-gallon tanks manufactured in high density linear roto-molded polyethylene for the safe and reliable transport and supply of Diesel and DEF. AM-TANK 105+13 offers a lightweight, robust, and portable tank solution giving users the ultimate convenience to refuel their fleet remotely on-site. Assembled and ready to use, this innovative tank can be easily loaded on the back of the pick-up truck and quickly plugged to the truck battery.

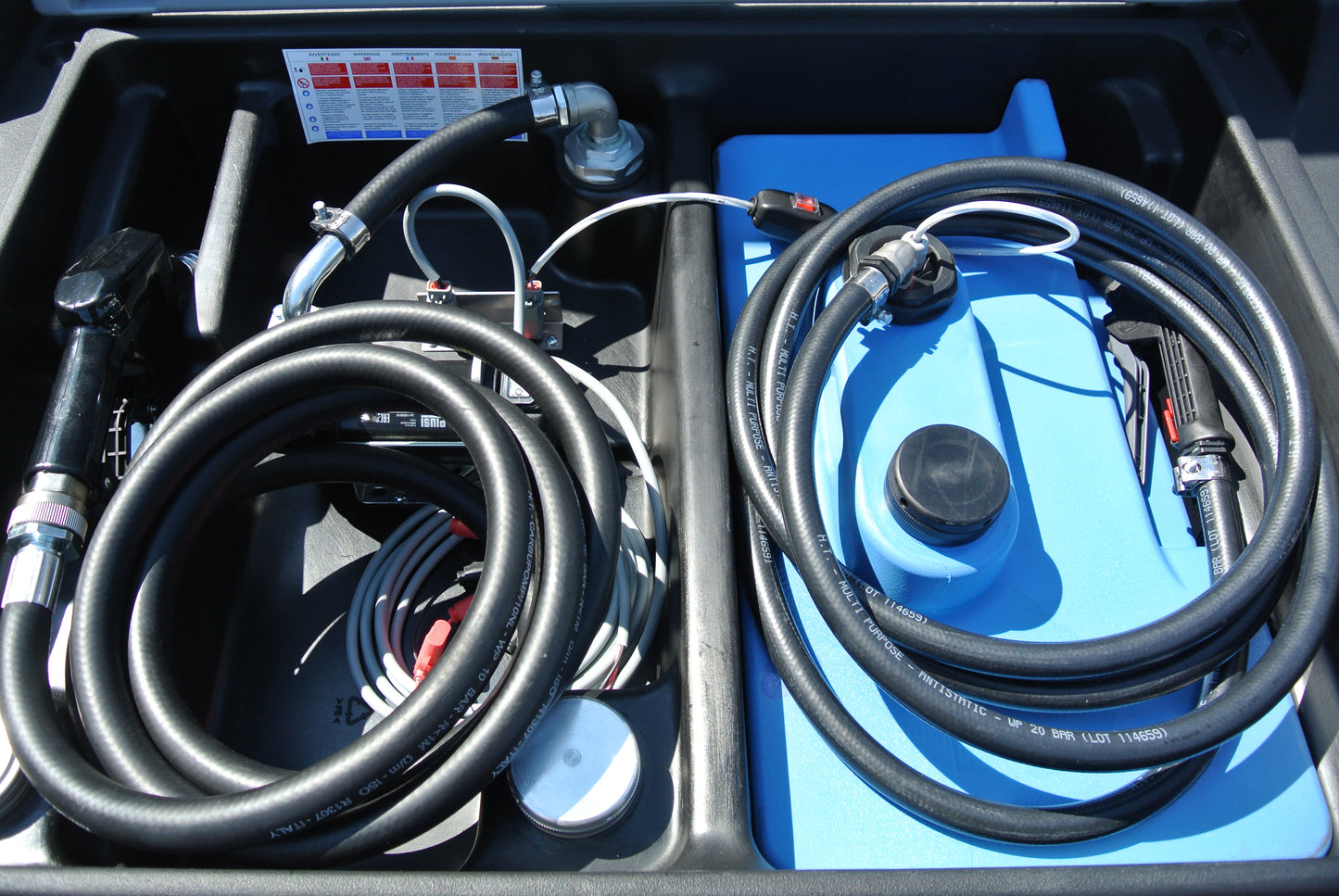

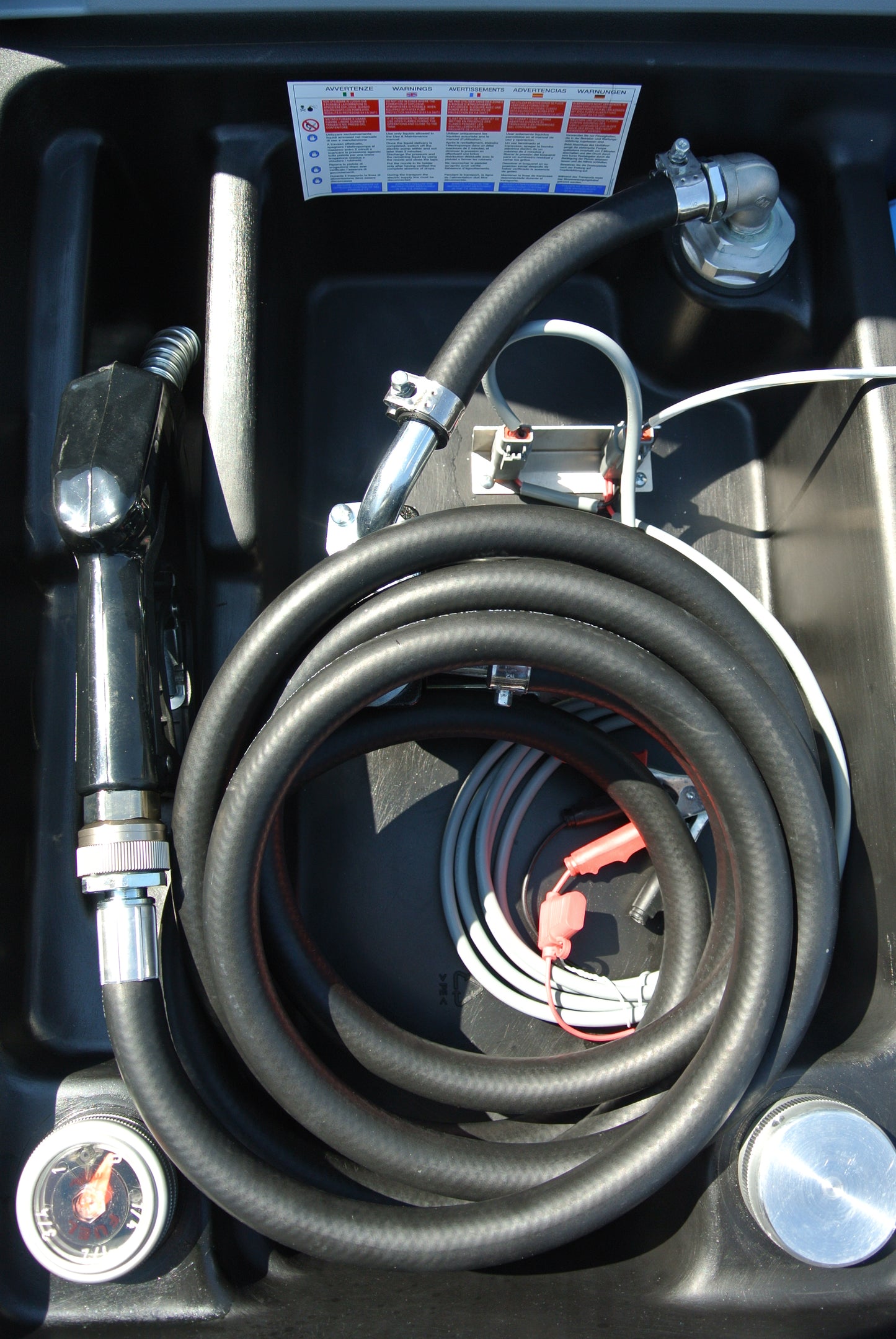

Fuel Transfer Unit DIESEL section:

  • 12 GPM Diesel DC Transfer Pump (12V, 300 Watt, 22 Amp, Duty Cycle: 30 minutes on/off, 2900 RPM, ON/OFF switch, IP55 rated)
  • 13 ft. Cable with clamps
  • 13 ft. of flexible dispensing hose
  • A60 Auto-nozzle

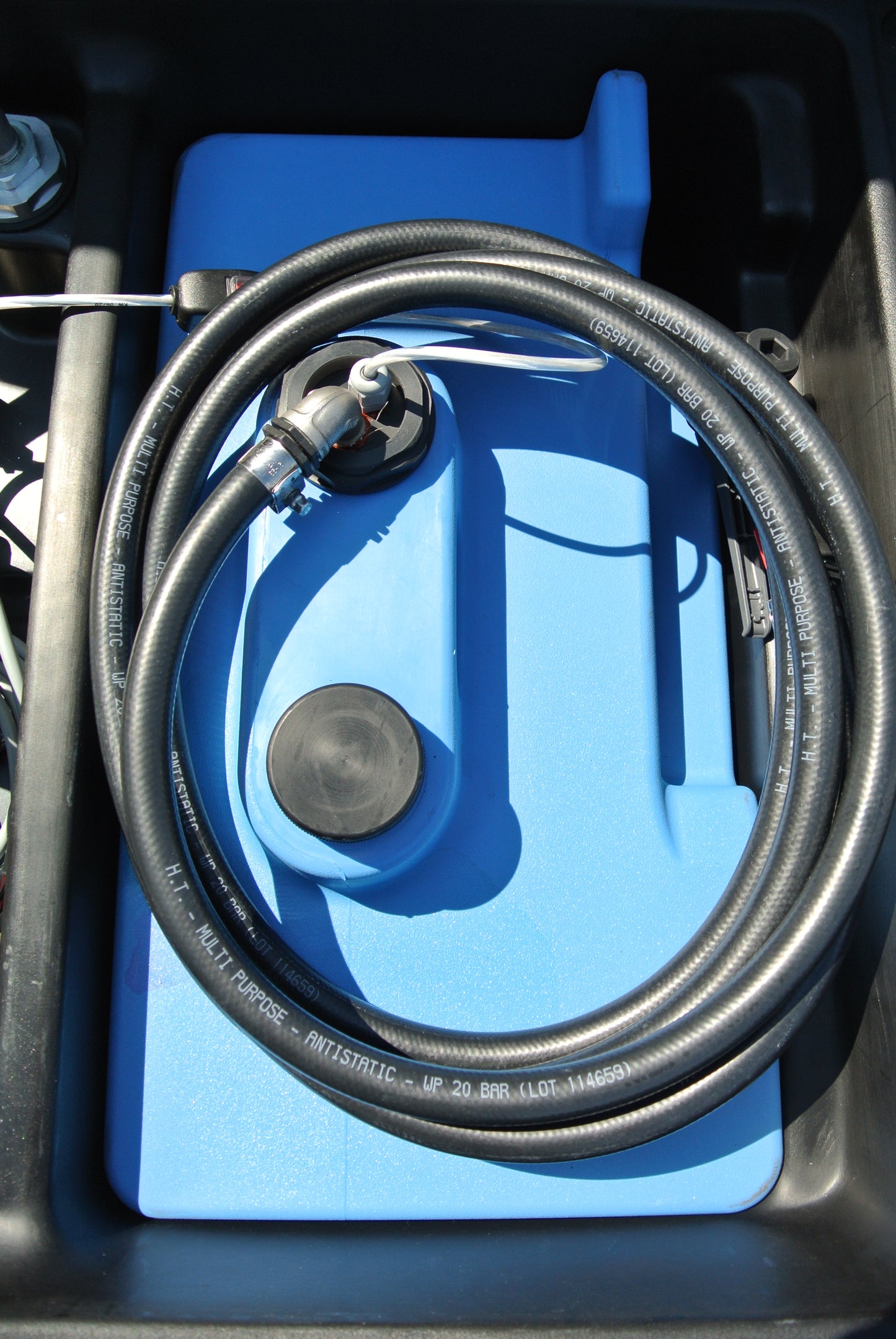

Fuel Transfer Unit DEF section:

  • 4 GPM Submersible DEF 12V DC Transfer Pump. It is powered by the same 12 volt source as the Diesel section with a separate power plug. No additional power cables are required
  • 13 ft. of flexible dispensing hose
  • Manual nozzle


Features:

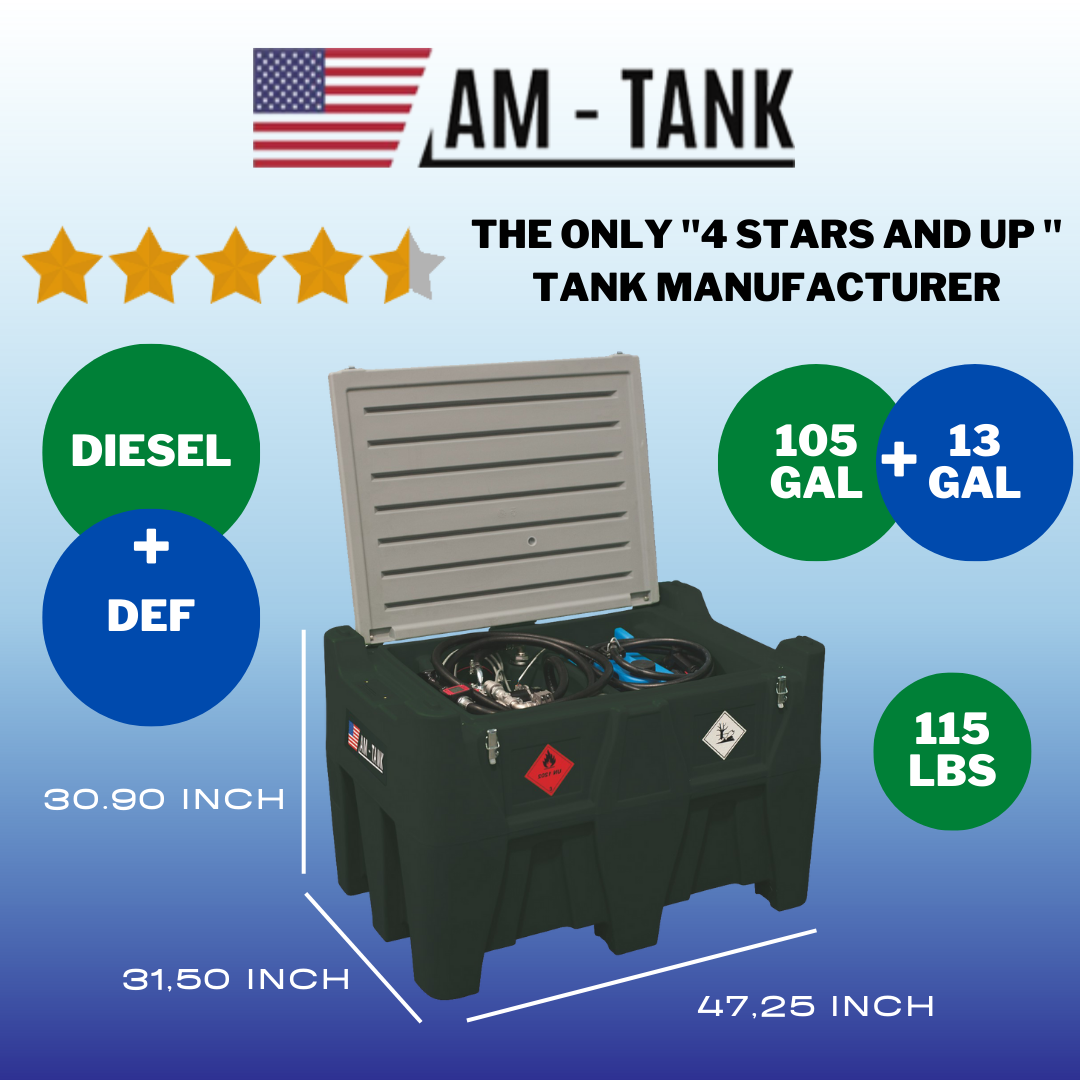

• Nominal capacity: 105+13 gal [400 + 50 lt]
• Tank total length: 47,2 in [120 cm]
• Tank total width: 31,5 in [80 cm]
• Tank total height: 30,9 in [78,5 cm]
• Tank total weight**: 121 lbs [55 kg]
**(including fuel unit and accessories)

Ships LTL Freight to Lower 48. Please allow 2-4 weeks for delivery.
